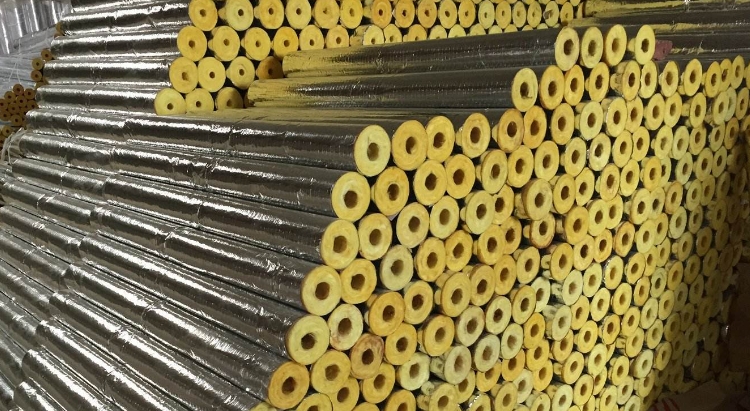

Aluminum foil centrifugal glass wool tube shell is a tubular thermal insulation material composed of glass fiber and adhesive, which is dedicated to the thermal insulation of small and medium-sized pipe systems (such as HVAC, refrigeration, steam, etc.), and can work normally at an ambient temperature of -50 ° C ~400 ° C.

Aluminum foil centrifugal glass wool tube shell has the characteristics of thermal insulation, corrosion resistance, fire resistance, high temperature resistance, easy installation, light material and so on. It is widely used for heat preservation and insulation of heating pipes, air conditioning pipes and refrigeration equipment in civil buildings or industries, and the energy saving effect can be increased by 15-30%. Below, Xiaobian will explain the installation steps of aluminum foil centrifugal glass wool tube shell.

1. Prepare

Before construction, materials and tools need to be prepared, including customized aluminum foil centrifugal glass wool shell, cutting tools, fixing tools, gloves, masks, etc.

2. Cut aluminum foil centrifugal glass wool tube shell

According to the actual need, the glass wool tube shell is cut into the appropriate size of the pipe segment with a cutting tool, and then the obtained pipe segment is cut neatly.

3, clean the pipe surface

Before installing the glass wool shell, clean the surface of the pipe to make it free of impurities such as oil stains and dirt.

4. Install aluminum foil centrifugal glass wool tube shell

Install the cut glass wool tube shell on the pipe, and then secure it with aluminum foil tape or other fixing material. When fixed, it should not be too tight or too loose, and ensure that the glass wool tube shell is not loose and does not fall off. When the two sections of glass wool shell are spliced, the contact should be tight, and there should be no large gaps to avoid increasing heat dissipation.

5. Seal

Seal the joint and joint with aluminum foil tape to prevent heat leakage.

6. Check and clean up

After installation, check the installation quality of the glass wool sleeve to ensure that there are no loopholes or voids. Clean up the work area and clean up the waste glass wool fragments and other debris.
